Rakon introduces ultra-low phase jitter GHz VCXO for coherent optical modules and base stations

Rakon 12 October 2016
Rakon has announced the release of its new RVG1490L product series, a high performance VCXO that delivers frequencies up to 2.2 GHz with ultra-low RMS phase jitter (as low as 15 fs typ. 12 kHz – 20 MHz). The RVG1490L is an ideal solution for Coherent Optical Networking and high speed ADC/DAC/SERDES clocking, where excellent oscillator phase noise and jitter is critical to system performance. This product is also available as an XO, as Rakon’s RXG1490L series.

Key features:
  • Output frequency: 1.0 to 2.2 GHz
  • Package size: 14.0 x 9.0 mm, with model height options of 2.8 mm and 3.3 mm
  • RMS phase jitter as low as 15 fs (12 kHz – 20 MHz integration band)
  • Sinewave, Differential Sinewave or LVPECL outputs available
  • Lower temperature sensitivity than SAW-based oscillators

The RVG1490L is designed for applications that require high frequencies and ultra-low RMS phase jitter, such as Coherent Optical Modules and Base Station Radio Units.

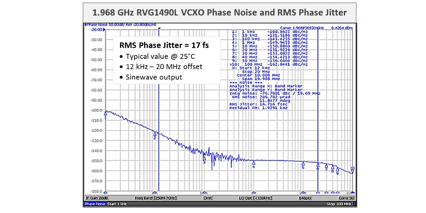

NEW-Rakon Introduces Ultra-low Phase Jitter GHz VCXO for Coherent Optical Modules and Base Stations-Graph-1200x600

The ever increasing need for bandwidth is pushing up requirements of communications equipment. Fiber optical communication systems are evolving from intensity modulation to coherent modulation techniques. Coherent modulation techniques require low close-in phase noise reference signals at high frequencies. The RVG1490L series with its capability to generate frequencies beyond 2 GHz at very low phase noise enables coherent optical transport systems. Rakon customers have been able to build cutting edge 100G coherent optical transport equipment by incorporating the RVG1490L with frequencies ranging from 1.8 GHz to 2.2 GHz.

The RVG1490L excels in radio applications. 5G, and other wireless transport applications are moving towards millimeter‐wave frequencies. With low close‐in phase noise capabilities, RVG1490L is able to provide clean, high frequency references with minimal contribution to EVM (Error Vector Magnitude) at high QAM (Quadrature Amplitude Modulation) rates for improved data throughput.

The RVG1490L may also be used as a reference for FPGAs in high speed interface applications and references for ADC/DACs in high speed data converters.

The RVG1490L product datasheet is available from Rakon's webpage. Please email: for further information and support, or browse the Low noise and low jitter VCXO  product page and the low noise low jitter XO product page on our website to learn more about Rakon’s many synchronising solutions for analogue Radio Frequency (RF), digital networking and digital Input/Output (I/O) communications.
